Geomat Soil Stabilization Grid - 8' x 169'

Geomat Soil Stabilization Grid - 8' x 169'

Geomat Soil Stabilization Grid - 8' x 169'

$1,656.68


FREE SHIPPING
SKU 7010TRM

The Geomat Soil Stabilization Grid (Enkamat  7010) is an ideal turf reinforcement solution. Each 8 foot by 169 foot mat is made of continuous nylon filaments fused where they intersect. Being made of nylon eliminates the buoyancy factor associated with submerged conditions. It provides permanent turf reinforcement protection in vegetated channels, as well as on slopes.

This TRM promotes vegetative growth that is crucial for hillsides.  The mat is 95% open to leave room for soil, mulch, and root interaction.

PRODUCT SPECS

  Model: 7010 TRM

  Weight: 75 lbs

  Size: 8' wide x 169' long

  Material Thickness: .25 inch

  Sq Ft: 1,352

  Core Material: Nylon

         ✔   Free Shipping

        ✎  Need a written quote?
              Request Online

        $  Volume Pricing on Large Orders

       ❔ Questions? Call (800) 583-4891

PRODUCT HIGHLIGHTS

  • Permanent erosion control for vegetated channels with expected shear stresses ≤ 8 psf
  • Permanent erosion control for moderate to steep slopes (≤1H:1V)
  • Support and enhance performance of ecosystem plants
  • Substrate for hydraulically applied Flexible Growth Medium (FGM) or Bonded Fiber Matrix (BFM)
  • Meets requirements of FHWA FP03 Type 5B TRM
  • Material Specific Gravity of > 1.14 prevents buoyancy— the No Float TRM.

SHIPPING

✔  All items ship for free (standard ground, see map)

☏  Call: (800) 583-4891 for pricing and shipping questions.

Shipping estimates shown on the map pertain to this specific product only. Orders typically ship in 1-3 business days. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.

Spec Sheet PDF

Install Guide

Looking for other TRMs? Please see our other products below:

EnkaMat - Turf Reinforcement Mat
EnkaMat 7010 - Turf Reinforcement Mat - Slope Installation
EnkaMat 7010 - Turf Reinforcement Mat
EnkaMat 7010 - Turf Reinforcement Mat
EnkaMat - Turf Reinforcement Mat
EnkaMat 7010 - Turf Reinforcement Mat - Slope Installation
EnkaMat 7010 - Turf Reinforcement Mat
EnkaMat 7010 - Turf Reinforcement Mat

EnkaMat 7010 - Turf Reinforcement Mat

$1,656.68
EnkaMat - Turf Reinforcement Mat
EnkaMat 7010 - Turf Reinforcement Mat - Slope Installation
EnkaMat 7020 - Turf Reinforcement Mat
EnkaMat 7020 - Turf Reinforcement Mat
EnkaMat - Turf Reinforcement Mat
EnkaMat 7010 - Turf Reinforcement Mat - Slope Installation
EnkaMat 7020 - Turf Reinforcement Mat
EnkaMat 7020 - Turf Reinforcement Mat

EnkaMat 7020 - Turf Reinforcement Mat

$1,664.82

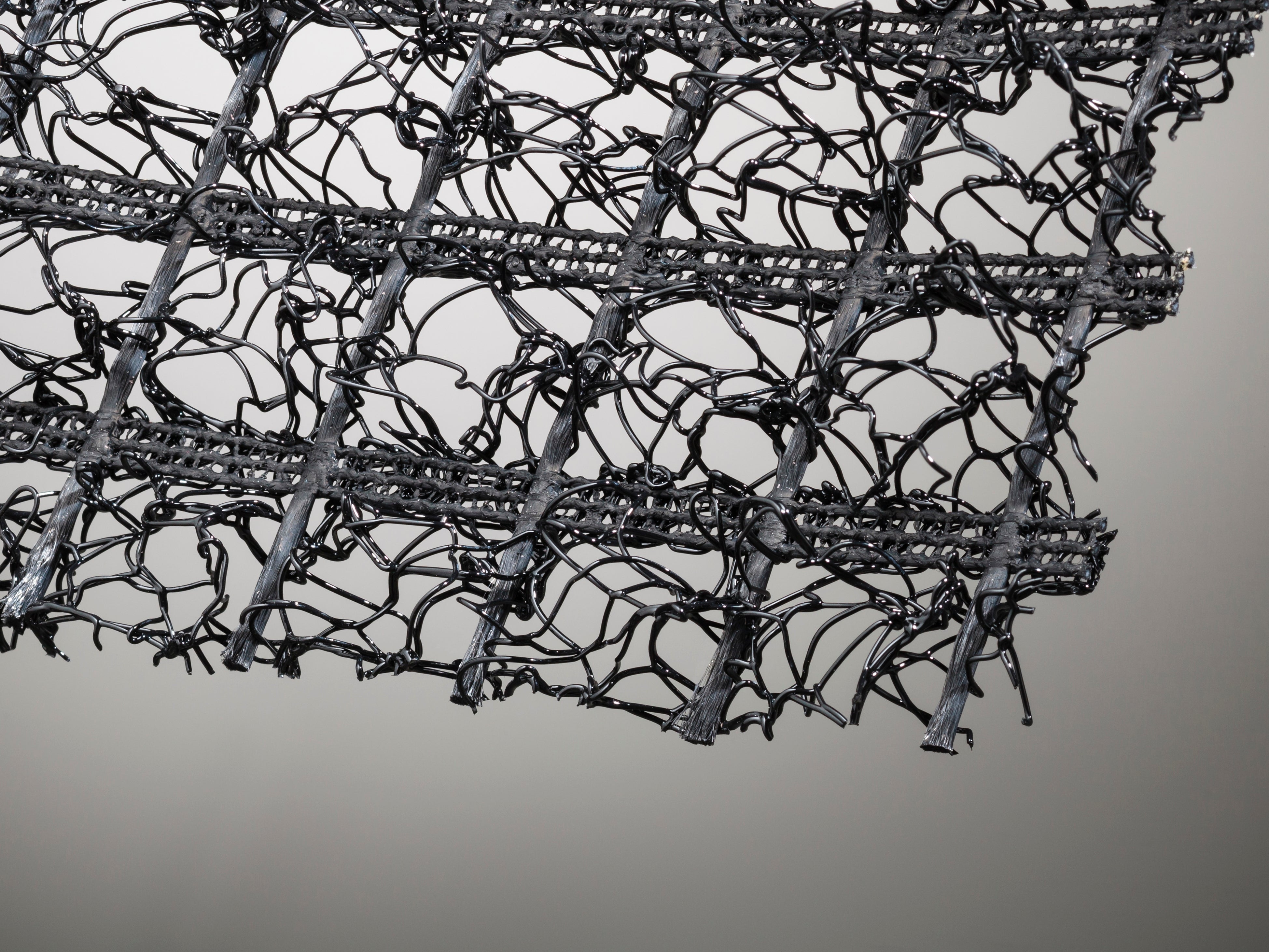

EnkaMat R45 - High Performance Turf Reinforcement Mat
EnkaMat R45 - High Performance Turf Reinforcement Mat - 8' x 90'
EnkaMat R45 - High Performance Turf Reinforcement Mat - 8' x 90'
EnkaMat R45 - High Performance Turf Reinforcement Mat
EnkaMat R45 - High Performance Turf Reinforcement Mat - 8' x 90'
EnkaMat R45 - High Performance Turf Reinforcement Mat - 8' x 90'

EnkaMat R45 - High Performance Turf Reinforcement Mat - 8' x 90'

$2,193.37
Pyramat 25 Turf Reinforcement Mat 8.5' x 120'
Pyramat 25 Turf Reinforcement Mat 8.5' x 120'
Pyramat 25 Turf Reinforcement Mat 8.5' x 120'
Pyramat 25 Turf Reinforcement Mat 8.5' x 120'
Pyramat 25 Turf Reinforcement Mat 8.5' x 120'
Pyramat 25 Turf Reinforcement Mat 8.5' x 120'

Pyramat 25 Turf Reinforcement Mat 8.5' x 120'

$2,297.13
Pyramat 50 Turf Reinforcement Mat 8.5' x 120'
Pyramat 50 Turf Reinforcement Mat 8.5' x 120'
Pyramat 50 Turf Reinforcement Mat 8.5' x 120'
Pyramat 50 Turf Reinforcement Mat 8.5' x 120'
Pyramat 50 Turf Reinforcement Mat 8.5' x 120'
Pyramat 50 Turf Reinforcement Mat 8.5' x 120'

Pyramat 50 Turf Reinforcement Mat 8.5' x 120'

$2,581.71
Pyramat 75 Turf Reinforcement Mat 8.5' x 120'
Pyramat 75 Turf Reinforcement Mat 8.5' x 120'
Pyramat 75 Turf Reinforcement Mat 8.5' x 120'
Pyramat 75 Turf Reinforcement Mat 8.5' x 120'
Pyramat 75 Turf Reinforcement Mat 8.5' x 120'
Pyramat 75 Turf Reinforcement Mat 8.5' x 120'

Pyramat 75 Turf Reinforcement Mat 8.5' x 120'

$2,771.43
Pyramat 50 Turf Reinforcement Mat 15' x 120'
Pyramat 50 Turf Reinforcement Mat 15' x 120'
Pyramat 50 Turf Reinforcement Mat 15' x 120'
Pyramat 50 Turf Reinforcement Mat 15' x 120'
Pyramat 50 Turf Reinforcement Mat 15' x 120'
Pyramat 50 Turf Reinforcement Mat 15' x 120'

Pyramat 50 Turf Reinforcement Mat 15' x 120'

$4,085.97
Pyramat 75 Turf Reinforcement Mat 15' x 120'
Pyramat 75 Turf Reinforcement Mat 15' x 120'
Pyramat 75 Turf Reinforcement Mat 15' x 120'
Pyramat 75 Turf Reinforcement Mat 15' x 120'
Pyramat 75 Turf Reinforcement Mat 15' x 120'
Pyramat 75 Turf Reinforcement Mat 15' x 120'

Pyramat 75 Turf Reinforcement Mat 15' x 120'

$4,420.77

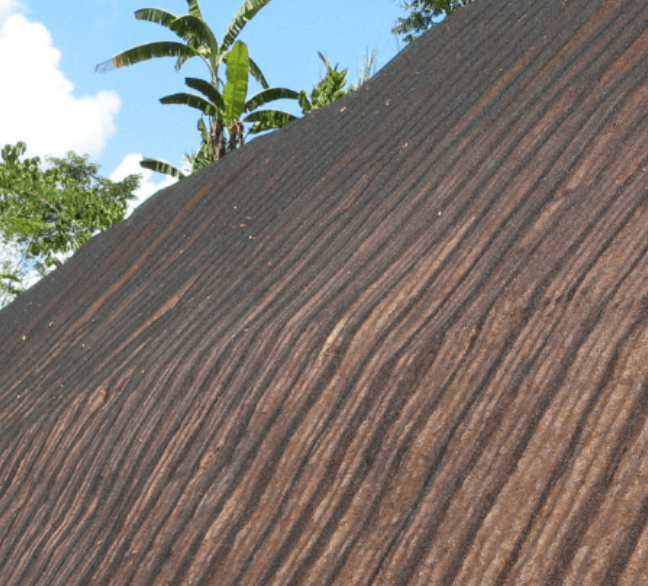

TRM on Hillside

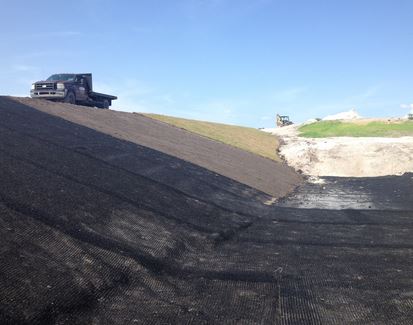

Geomat for Erosion Protection on Hillside

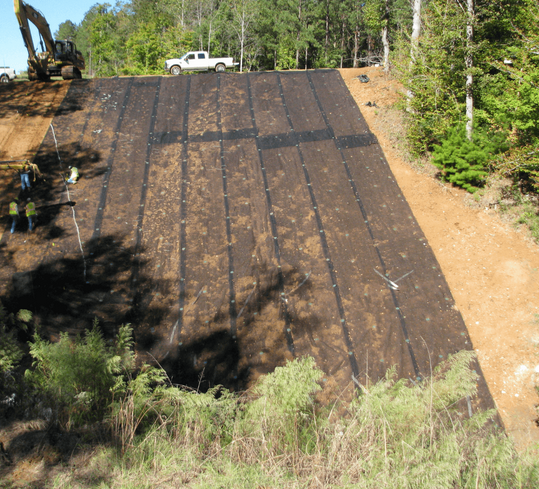

EnkaMat Geomats Will Protect Landfill Slopes From Erosion

Nature has its own way of protecting landfill slopes from erosion it's called vegetation. Unfortunately, there are times nature needs help. It cannot combat all the forces that occur or if the vegetation has not developed to the level it can protect against soil damage. Runoff and soil loss on newly established sloping landfill can be easily washed away by heavy rainfall.  There must be an alternative to prevent this from happening. The answer is EnkaMat control mats. Over the years, millions of square feet of EnkaMat have been installed on dry slopes to offer permanent protection and advance the growth of vegetation.

In some cases adding a erosion control filter sock for slope interruption can be helpful.

What Is EnkaMat?

EnkaMat has a variety of three-dimensional erosion-protection mats made of durable polyamide monofilaments that are thermally fused together at the crossing threads. These filaments form an artificial root structure over 90% of void space.  The products are available in different thicknesses up to 20 millimeters. You can find the perfect mat for your project including the expected intensity of rainfall, how long a rain event is expected to last, the inevitable erosion level, slope length, and gradient. For quick installation, there are mats that come 3,85 meters wide.

Note: We also offer compost socks which are filled with a natural fiber that helps to hold sediment back while allowing water to flow though..

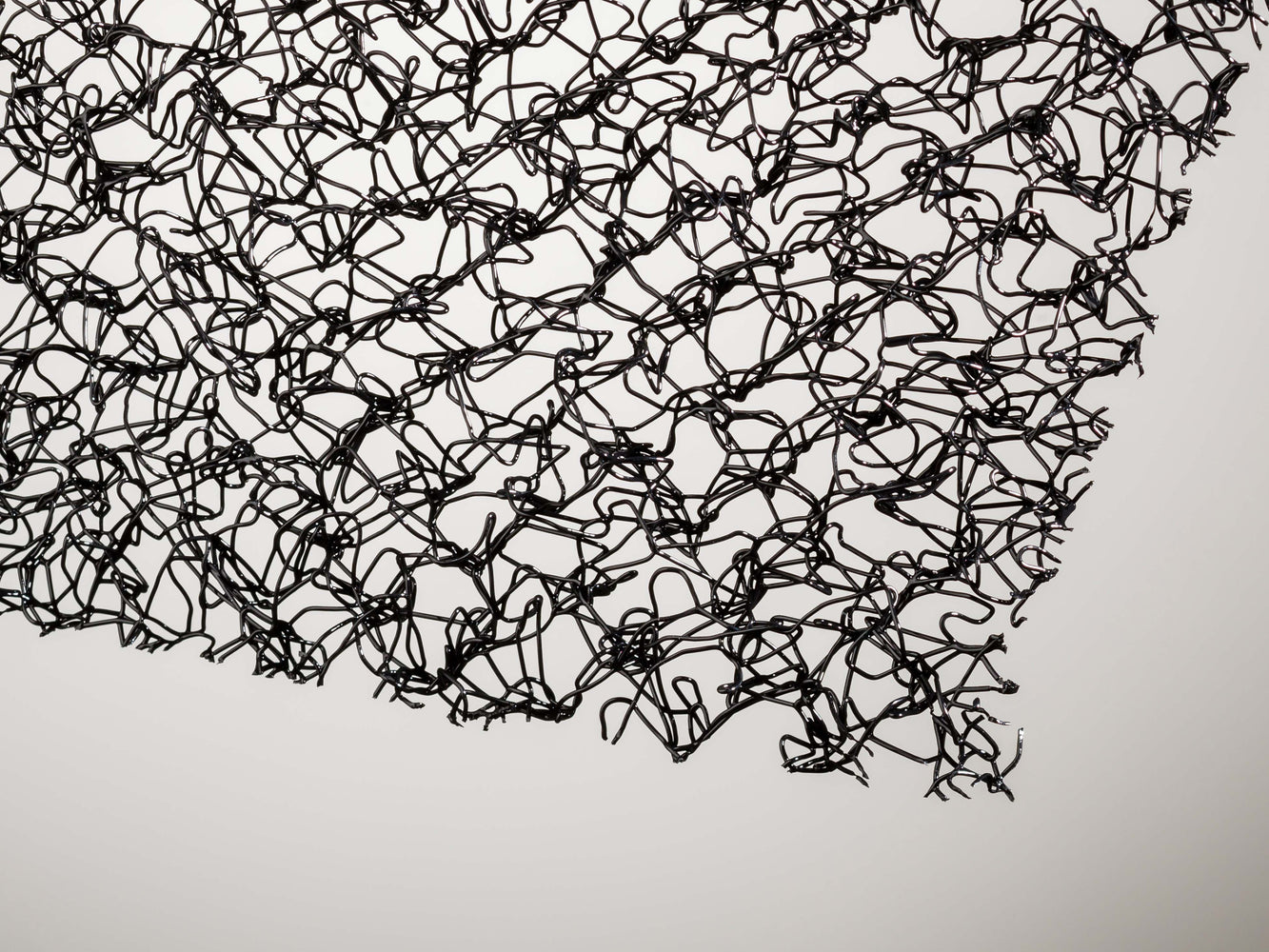

Enkamat 7010 TRM

Enkamat 7010 is a Type of Geomat

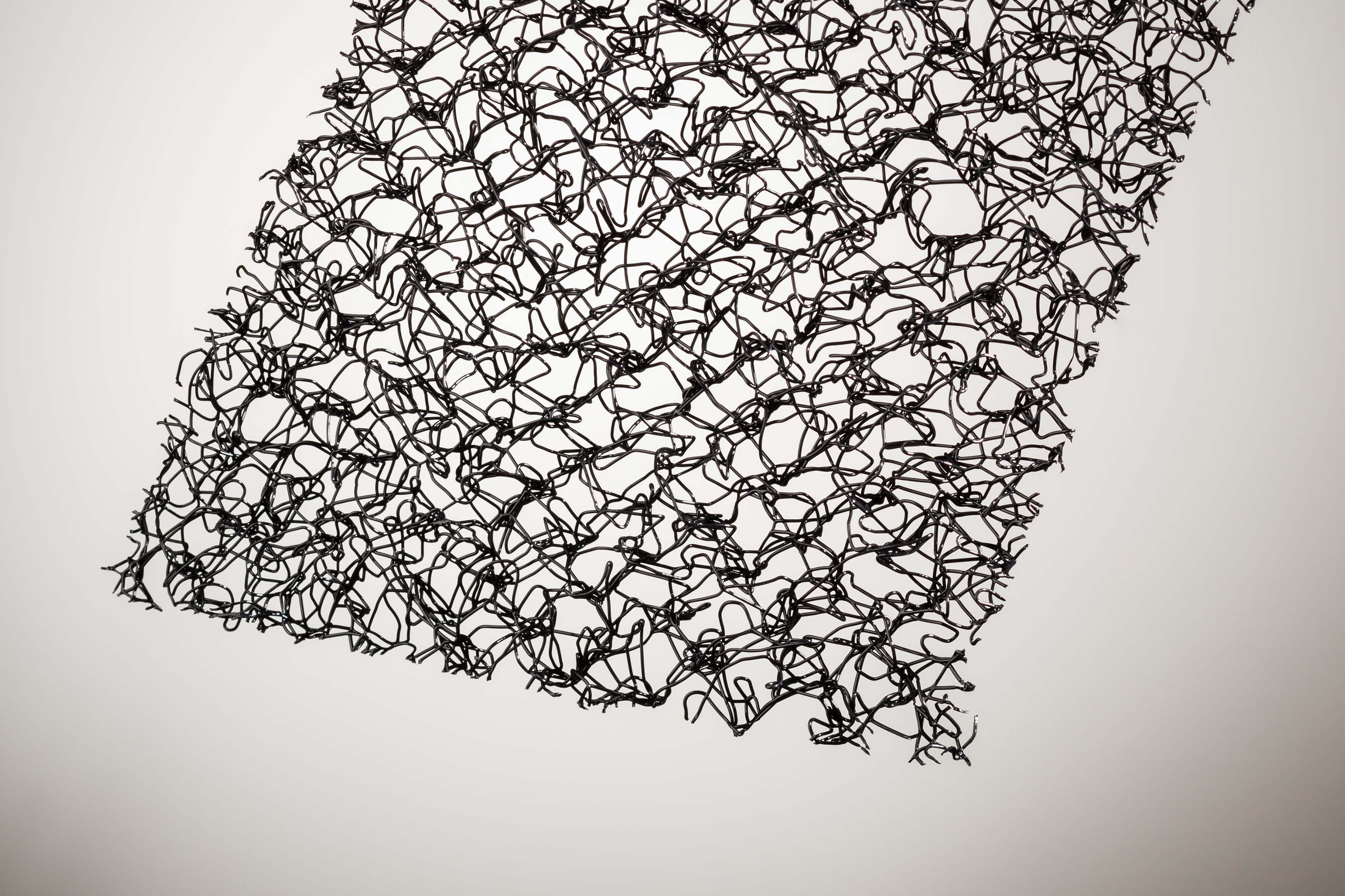

Side View of Geomat

Enkamat 7010 Geomat Side View

How To Use EnkaMat To Prevent Erosion

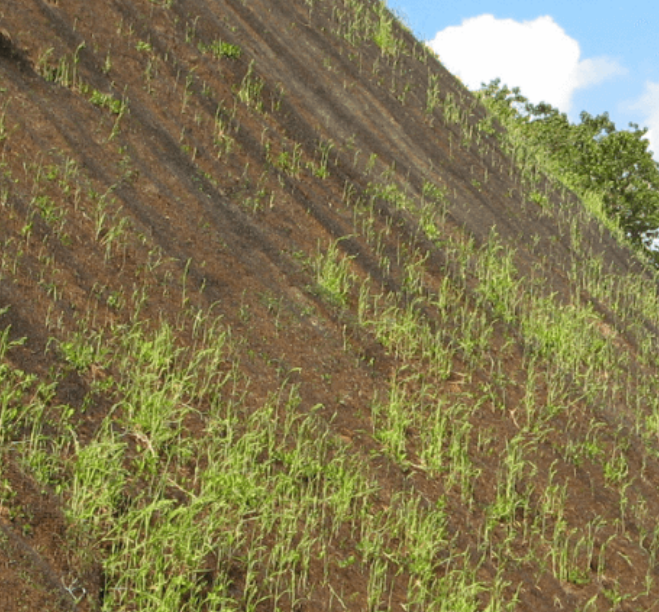

Directly after installing the mats the surface of the soil will be protected from erosion from rainwater and wind. EnkaMat also encourages the development of vegetation under conditions that are usually very difficult to deal with. EnkaMat will permanently reinforce vegetation on landfill slopes whether seeded, filled with topsoil, or mulched. EnkaMat can be easily pinned in place so they can remain unfilled at times. To ensure close contact with soil but the mat should be pinned at regular intervals. These mats are maintenance-free. Due to the high-quality polyamide, they will keep on protecting for a long time to come.

Note: If your project calls for a temporary erosion control mat we also have a coconut mat that typically lasts around 3 years.

What Makes EnkaMat Ideal?

Features

- More than 90% of void space
-Up to 20 mm in thickness and 3,85 in width
- Offers artificial root structure up to 2,980 lm/m2
- Flexible and lightweight
- UV resistant
- Extremely durable

Benefits

-Offers immediate and lasting erosion control
- Handles easily
- Aids with fast installation
- Conforms easily with difficult soil areas
- Allows for seeding, planting, or hydroseeding
- Supports rapid vegetation growth
- Maintenance free
- Blends into the landscape
